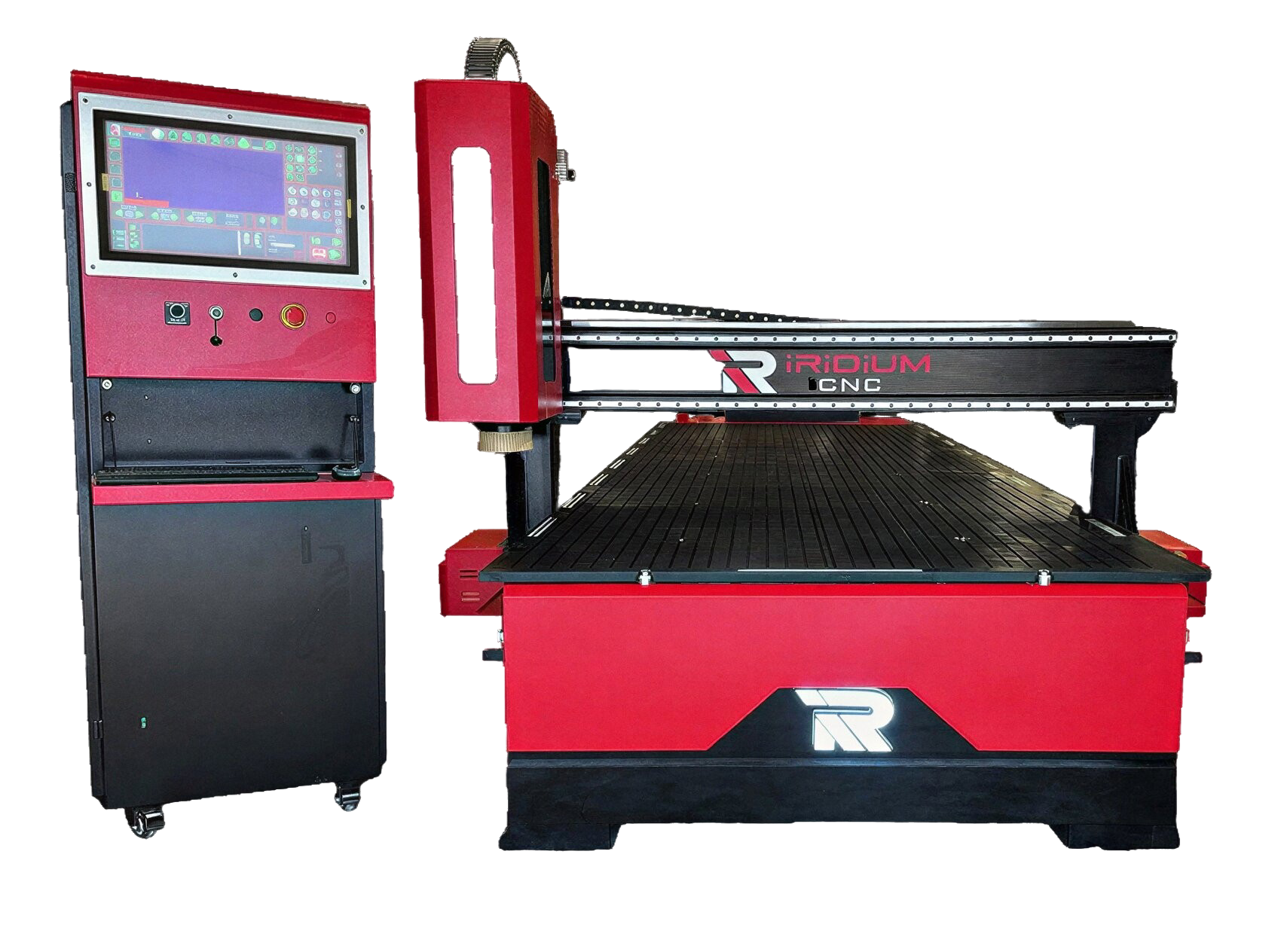

CNC Router

Pro Max Serie

Ultra high performance that
eliminates subcontracting.

Structure

Welded Steel

Automatic tool changer

8 positions

Motor

Servomotor

Travel speed

1100 inches/min.

Get a quote

Download the data sheet

4 models.
Unequalled productivity.

When you buy
(starting at)

4 x 8

5  x 10

5  x 12

5  x 14

4 x 8   45 000 $

5 x 10  54 000 $

5 x 12 sur demande

5 x 14 sur demande

Custom
price

48 000 $

54 000 $

on demand

on demand

Get a quote

Technical Data

Size (Weight)

4X8 (3000 lbs), 5X10 (3600 lbs), 5X12 (3800 lbs), 5X14 (4000 lbs). Other sizes available on request.

Structure
Fastening method
Positioner

Welded steel frame
Suction table / T-Slot
Pneumatic position pin

Working envelope

4X8: 49¼ in x 98 in /   5X10: 60 ¼ in X 121 in

Space under the platform

9 ¼ in

Displacement

X-Y 25 mm Hiwin linear bearing,
rack and pinion Z ball screws.
Travel speed: 1100 in/min

Electrical input
Plug type

220V, 1 phase, 20A
L6-20

RPM
HP
Cooling
Tool holder
Automatic tool feeder

Spindle 18 000 RPM
10HP
Air cooled
ER32 Collet / ISO 30 Cone
8 positions

CAM
Platform
Remote support

Compatible with virtually all software
Windows
TeamViewer

Get a quote

Options

Vacuum suction
pump

1 to 3-phase
converter

Accessory
starter

8 hp industrial dust collector

Tool cooler /
oiler

Licence CAD / CAM VCARV PRO

Amana tool starter kit

Safety curtains /
barriers

Get a quote

Included

2 year* warranty

English & French
technical support

After-sales service

Training*

Screen, keyboard
& mouse

High-speed ethernet communication

Window-based computer

Get a quote

The Pro Series is our top-of-the-range CNC series, including all available options, which translates into a high-performance, reliable and versatile machine.

Invest in an Iridium Pro Series CNC Router and increase your productivity. Save time and money while improving your results. Whatever your industry: cabinet maker, kitchen cabinet maker or sign maker. Whether for SME or industrial use, to cut or machine aluminum, plastic, acrylic, wood, melamine, plywood, Russian plywood and many others.

Ideal for cutting: wood, melamine, plywood, Russian plywood, aluminum, acrylic, plastic and many others.

Get a quote

We can advise you
and answer all of your questions

Contact us

*Certain conditions apply
