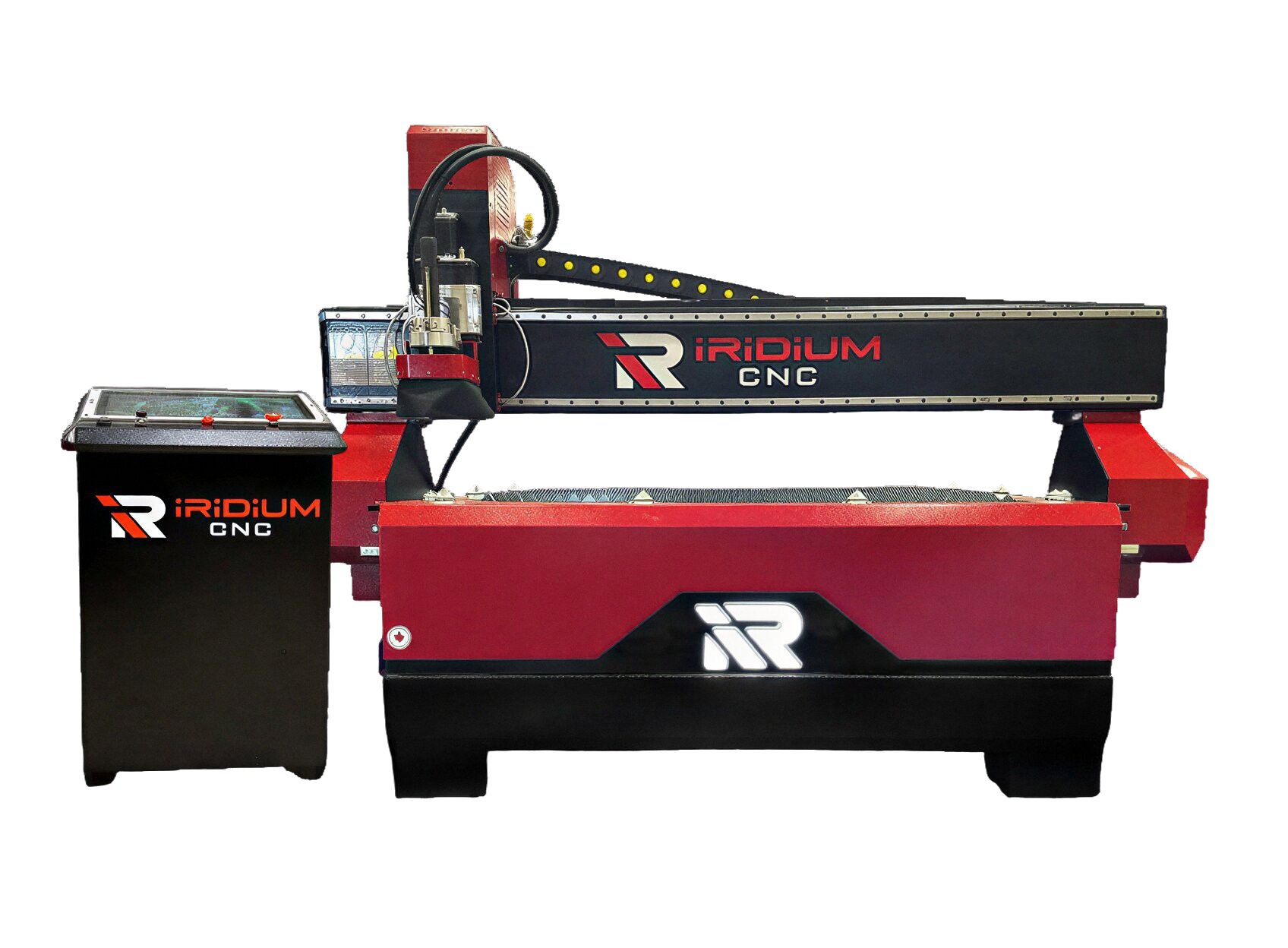

CNC

Plasma Pro

Makes your cutting experience
awesome and easy.

Structure

Welded Steel

Anti-collision system

THC
(automatic height control)
and proximity sensor

Motor

Stepper motor

Air outlet

Downdraft smoke extraction

Get a quote

Download the data sheet

A variety of possibilities.

Hypertherm Powermax 45

4′ x 4′: 33 000$
4′ x 8′: 37 000$
5′ x 10′: 40 000$

Perçage: 1/2po
Coupe: 5/8po

Voir la brochure

Hypertherm Powermax 65

4′ x 4′: 35 000$
4′ x 8′: 39 000$
5′ x 10′: 42 000$

Perçage: 5/8po
Coupe:  3/4po

Voir la brochure

Hypertherm Powermax 85

4′ x 4′: 38 000$
4′ x 8′ : 41 000$
5′ x 10′: 44 000$

Perçage 3/4po
Coupe: 1po

Voir la brochure

Hypertherm Powermax 105

4′ x 4′: 39 000$
4′ x 8′: 43 000$
5′ x 10′: 46 000$

Perçage 7/8po
Coupe 1 1/4po

Voir la brochure

Hypertherm Powermax 125

4′ x 4′: 42 000$
4′ x 8′: 45 000$
5′ x 10′: 48 000$

Perçage 1po
Coupe 1 1/2po

Voir la brochure

*Prices are indicative and subject to change without notice..

Technical Data

Size (Weight)

4X4 (1500 lbs), 4X8 (1800 lbs), 5X10 (2100 lbs)

Working envelope
Welded steel frame

Air outlet

Smoke extraction through 2 x 5 5/8″ holes at the rear of the machine (except for the 4X4, which has only one extraction hole).

Space under the platform

6 in

Displacement

X-Y 20 mm Hiwin linear bearing, rack and pinion. Travel speed 600 in/min.
Z ball screws
THC (Automatic Height Controller)
Proximity sensor

Electrical input
Socket type

Source Plasma

220V, 1 phase, 20 A
L6-20

To be determined according to force required

CAM
Platform
Remote support

Compatible with virtually all software
Windows
TeamViewer

Get a quote

Options

Water basin

Ohmic contact ring

Accessory starter

Industrial
dust collector

Servomotor

Get a quote

Included

2-year* warranty

English & French technical support

After-sale service

Training*

Get a quote

Whether you’re cutting steel, aluminum or stainless steel, CNC Plasma tables guarantee precision and longevity, with several feeding options to suit your needs.

Our plasma machines are powered by the world’s best plasma source, Hypertherm. Hypertherm plasma sources are the most renowned on the market, recognized for their cutting quality, reliability and long consumable life. No other plasma manufacturer can match Hypertherm’s technology.

A high-performance, reliable system that’s extremely easy to use.

Get a quote

We can advise you
and answer all of your questions

Contact us

*Certain conditions apply.
