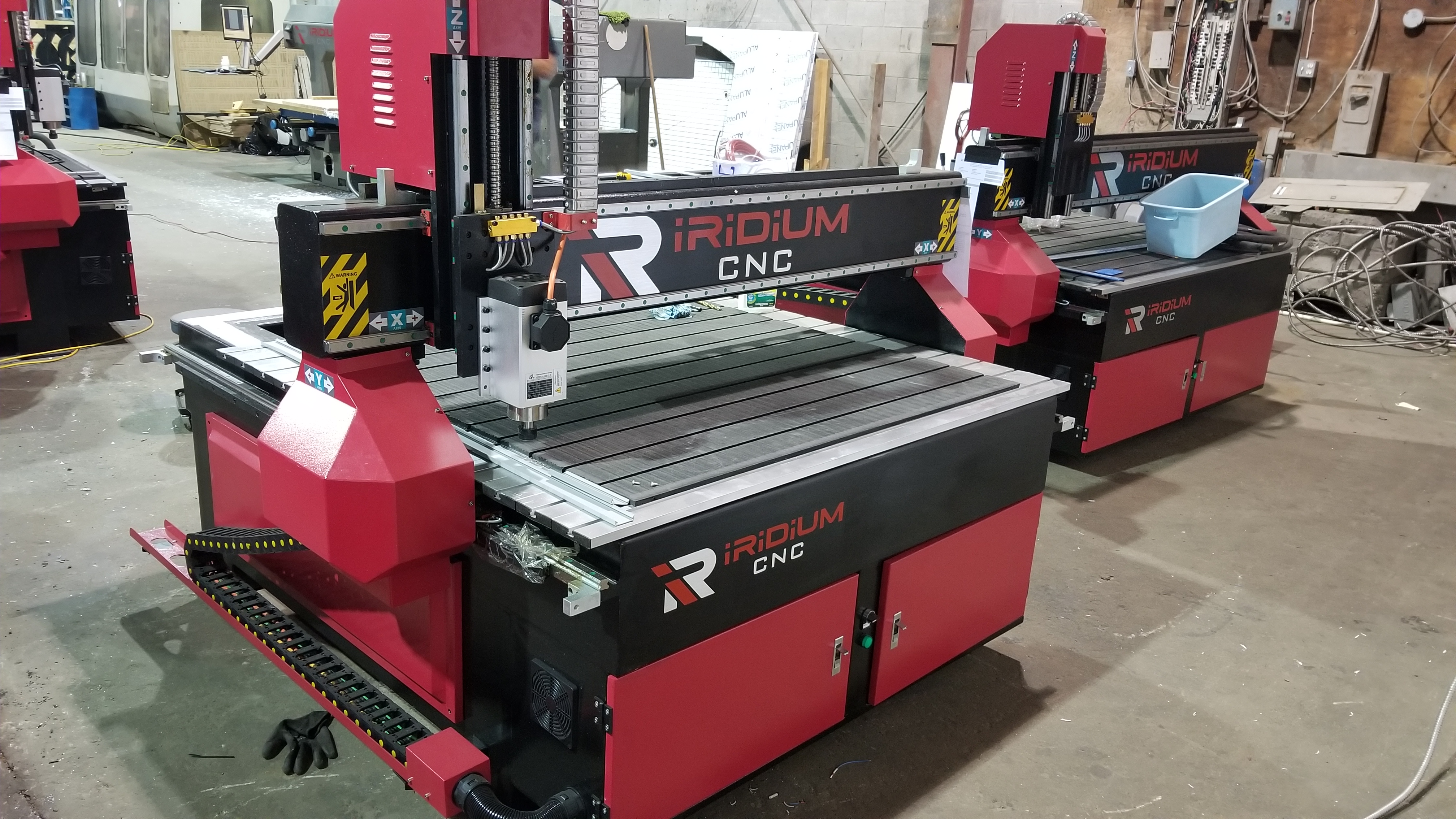

4 × 4 IRIDIUM CNC ROUTER

MANUFACTURED AT OUR boisbriand PLANT

BEST WARRANTY IN THE INDUSTRY

UNLIMITED SUPPORT

$16,900

4 mm welded steel frame destressed by a unique thermal process. This makes for a heavy, ultra-stable, and vibration-free table.

Air-cooled spindle, 18,000 RPM, 5 HP

49 in × 49 in working area

20 mm Hiwin linear rail

Oversized precision helical rack and pinion drive

T-slot aluminum table

Stepper motor

Travel speed of 650 IPM

Cutting speed of 500 IPM

Single-phase, 220 V, 60 Hz

Industrial PC-based controller imported from Germany, one of the most advanced on the market

Advanced toolpath optimization for ultra-fast production with Look Ahead Feed technology, very advantageous for 3D programs

Nesting mode

OpenGL graphics for real-time viewing of the machining process

Compatible with virtually all CAM software

 OPTIONS

2-zone vacuum table $1050

Automatic 6-tool changer, 10 HP spindle $5900

Wireless controller $350

Vacuum pump (see our Vacuum pump page)

Tool zeroing probe $200

Tool cooling system $200

Servo-motor option $4900
