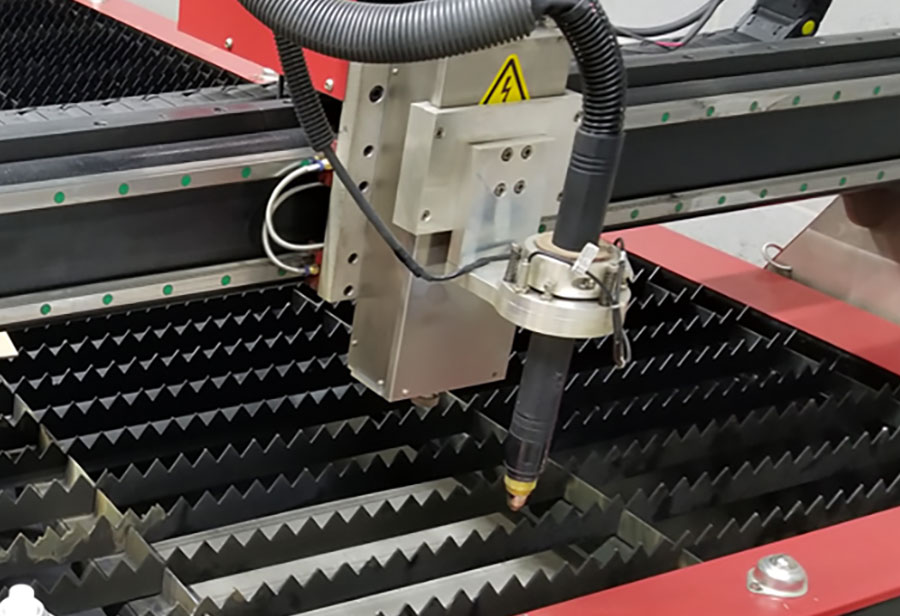

cnc plasma 5×10 / automatic torch height controler

MANUFACTURED AT OUR Saint-Eustache PLANT

BEST WARRANTY IN THE INDUSTRY

UNLIMITED SUPPORT



                                                          Table with out plasma generator     22900$

                                                                    Table plasma LGK 45 amps      23900$

                                                                 Table plasma LGK 100 amps      24900$

                                    Table plasma Hypertherme PowerMax 45     25900$

                                   Table plasma Hypertherme PowerMax 65     27300$

                                  Table plasma Hypertherme PowerMax 85      29900$

                                 Table plasma Hypertherme PowerMax 105     32900$

                                 Table plasma Hypertherme PowerMax 125     35600$



4 mm welded steel frame destressed by a unique thermal process. This makes for a heavy, ultra-stable, and vibration-free table.

60 in x 120 in working area

20 mm Hiwin linear rail

Oversized precision helical pinion drive

Steel downdraft table for highly efficient smoke evacuation

Stepper motor

Travel speed of 650 IPM

Cutting speed of 550 IPM

Single-phase table, 220 V, 60 Hz

2 large exhaust fans included

Advanced toolpath optimization for ultra-fast production with Look Ahead Feed technology, very advantageous for 3D programs

Mode nesting

Grafique Open GL permet de voir l’usinage en temps réel

Programming software licence included

1-year full warranty on parts and labour

Outstanding after-sales service

Unlimited help line support
